商品の詳細:
|
| 色: | 白 | 以下のための特別な: | 短いシールチューブ |
|---|---|---|---|
| 拡張タイプ: | 空気圧 | 移動ストローク: | 100mm |
| 型: | カスタマイズされた | ||
| ハイライト: | Cold Shrink Technology,Self-Cleaning Function,High Creepage Performance |
||

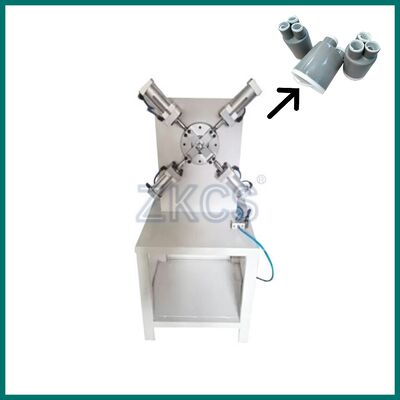

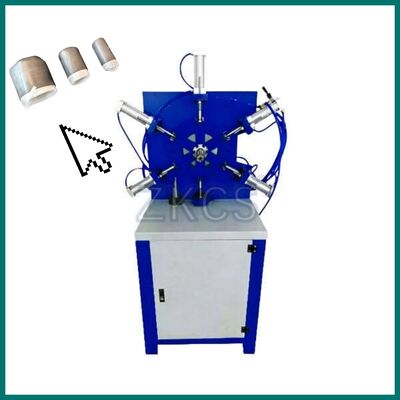

Cold Shrink Cable Accessory Manufacturing: The primary function of this Pneumatic expanding machine is expanding cold shrink end caps, short tubes, and finger sleeves for power transmission and distribution systems.
Telecom Cable Sealing Production: This Pneumatic expanding machine supports expansion of cold shrink sealing parts for fiber optic and telecom cable connections, ensuring long-lasting waterproof and airtight performance.
| No. | Item | Parameters |
| 01 | Dynamic system | Pneumatic control, not lower than 0.6Mpa |
| 02 | Pneumatic cylinder stroke | 150mm |
| 03 | Expanding stroke | 150mm |
| 04 | Pneumatic cylinder | 6pcs |
| 05 | Pneumatic diameter | 75mm |
|
06 |
After expanding diameter | Min. 16mm |
| Max. 150mm | ||
| 07 | Expanding length |
Silicon lower than 130mm; EPDM lower than 100mm |
| 08 | Machine color |
Main body:blue Fence:white |
| 09 | Fence | Lower closed fence |
| 10 | Accessory | One set expanding mold for small fingers(Ø16mm, length 100mm) |
| 11 | Ref. machine size(L×W×H) | 1000×800×1600mm |
1. Who are we?
We are professional in cold shrink industry. Our products have been exported to America, Australia, Egypt, Taiwan, India, Indonesia, Egypt, Spain, Italy and Germany etc, Europe countries. Currently, we already cooperated many famous companies in electrical and telecommunication industry.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Cold shrink series sealing products, including customized processing machines and products kits, for examples: processing winding and expanding machines, spiraling strip/tube supporting material, EPDM cold shrink tube and silicone cable accessories kit in telecommunication and electrical power industry.
4. Why should you buy from us not from other suppliers?
Years focus on telecom and power infrastructure material, with experienced engineer and workers, with turnkey solution for cold shrink line to solve all your problem in this industry with competitive price.
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW standard international terms and welcome commercial terms discussion;
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow;
Language: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian
Shipment: express, sea and air shipping.
