商品の詳細:
|
| マスチック: | 内部 | UV抵抗: | 素晴らしい |
|---|---|---|---|
| 材料: | シリコンゴム | 色: | グレーブラックレッドイエローブルー |
| 収縮の前のID: | 40 mm | に適しています: | コミュニケーション基地局 |
| パッキング: | カートン | 化学耐性: | はい |
| ハイライト: | Self-fusing EPR material,Waterproof and seamless sealing,Excellent electrical insulation |
||
Product Description

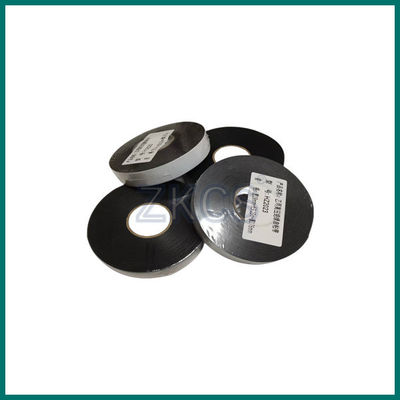

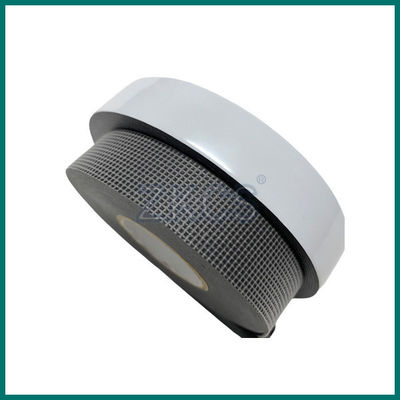

EPR High Voltage Insulation Tape is designed for reliable electrical insulation and protection in high voltage environments.
This EPR High Voltage Insulation Tape offers exceptional resistance to heat, cold, UV, and moisture.
Made of high-quality ethylene propylene rubber, the EPR High Voltage Insulation Tape self-fuses into a seamless, waterproof, and durable protective layer.
No glue, no gaps — just complete sealing and long-term insulation.
Whether for cable joints, terminations, or busbar wrapping, EPR High Voltage Insulation Tape ensures safety and performance in every connection.
With strong self-amalgamating properties, this EPR High Voltage Insulation Tape is the trusted choice for electrical engineers and technicians worldwide.
Use EPR High Voltage Insulation Tape for dependable results under any condition.
Features
• Made of high-quality Ethylene Propylene Rubber (EPR)
• Self-fusing and self-amalgamating — no adhesive needed
• Seamless waterproof and moisture-proof insulation
• Excellent resistance to UV, ozone, acid, alkali, and aging
• Performs reliably in high and low temperatures
• Superior dielectric strength for high voltage protection
• Easy to stretch, wrap, and install in seconds
Product Normal Specification:
| Product | Model No. | Normal Specification |
|
ZK2023 LINERED RUBBER (EPR) HIGH VOLTAGE SELF AMALGAMATING TAPES |
1 | 19mm*0.76mm*9.15m |
| 2 | 25.4mm*0.76mm*5m | |
| 3 | 38mm*0.76mm*9.15m | |
| 4 | 51mm*0.76mm*9.15m |
EPR high voltage insulation tape technical parameters
| Technical parameters | ||
| Performance | Typical data | Test method |
| Tensile strength | 3.83MPa | ASTM D 4325 |
| Elongation at break | 850% | ASTM D 4325 |
| dielectric strength | 35.16KV/mm | ASTM D 4325 |
| volume resistivity | 3.5×1015Ωcm | ASTM D 4325 |
| Heat aging(130℃168h) | Pass | ASTM D 4325 |
| Ozone aging | Pass | ASTM D 4325 |
| UV aging | Pass | ASTM D 4325 |
| Xenon lamp | Pass | ISO 4892-2 |
Applications
• High voltage cable joints and terminations
• Busbar insulation and outdoor power connections
• Electrical maintenance and emergency repairs
• Telecommunications, power distribution, and substations
• Waterproof protection for cable sleeves and connectors
