商品の詳細:
|
| 収縮後の長さ: | 152-457mm | パフォーマンス: | 防水 |
|---|---|---|---|
| 応用: | 電力および通信産業 | 製造機: | 繊維拡張機 |
| ハイライト: | Self-fusing tape,Strong waterproof sealing,Durable cable protection |
||
Description:

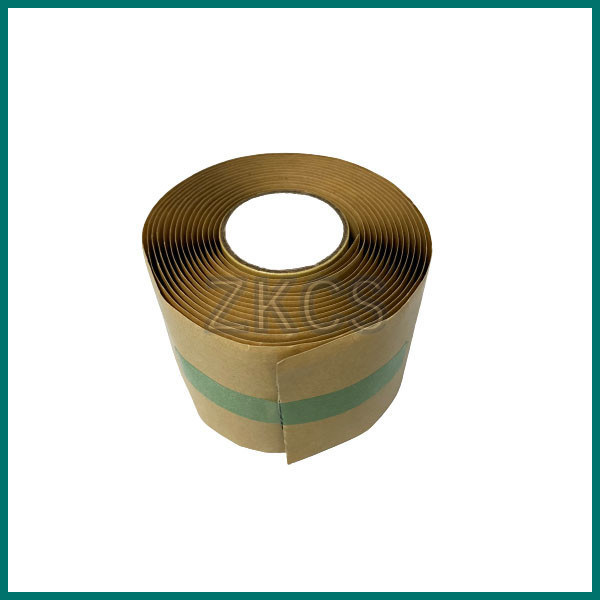

Waterproof insulation tape is a premium self-fusing tape designed for reliable sealing and electrical insulation. It easily conforms to irregular surfaces, offering excellent adhesion and durability. With strong compatibility across different cable types, outstanding weather resistance, and long-lasting waterproof performance, it provides dependable protection in the most demanding conditions.
Features:
• Excellent conformability on irregular surfaces
• Wide compatibility with different cable types
• Self-fusing design for seamless insulation and sealing
• Wide operating temperature range
• Superior weather resistance and waterproof performance
• Strong adhesion to copper, aluminum, and cable sheath materials
Applications:
• Waterproof sealing for connectors in communication equipment, base stations, and antennas
• Sealing protection for overhead conductor joints
• Repair and reinforcement of cable sheaths
• Primary insulation for busbar connections up to 35kV
• Waterproof sealing for grounding lines
Waterproof Insulation Tape Technical parameters
| Technical parameters | ||
| Performance | Typical data | Test method |
| Tensile strength | 1.29MPa | ASTM D 4325 |
| Elongation at break | 970% | ASTM D 4325 |
| dielectric strength | 26.5KV/mm | ASTM D 4325 |
| Adhesion(180°,steel plate) | 78.4N/10mm | ASTM D 1000 |
| Heat aging | Pass | ASTM D 4388 |
| Ozone aging | Pass | ASTM D 4388 |
| UV aging | Pass | ASTM D 4388 |
| Xenon lamp | Pass | ASTM D 4388 |
| Product | Model No. | Normal Specification |
|
ZK2028 Waterproof Insulation Tape |
1 | 51mm*1.65mm*3m |
| 2 | 51mm*1.65mm*1m |
